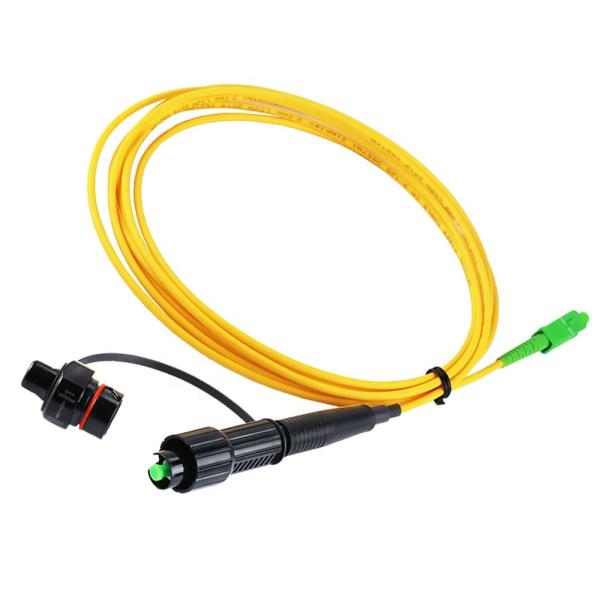

SC APC fiber patch cord with Huawei mini SC waterproof connectors 3.0mm single mode for outdoor FTTH solutions
UNIFIBER provide Huawei Compatible Mini SC incorporates an SC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptacle.The SC connectors mate to a standard adapter providing a common interface for FTTX applications.This connector always come with 2.0*30.mm self-supporting drop cable, 3.0mm indoor cable, or 5.0mm round cable. There is another mini SC connector with Corning Optitap connector compatiable.
FEATURES
Ceramic Ferrule;
High return loss and Low insertion loss;
Good repeatability and and exchangeability
Excellent Polished and 100% tested;
IP67 Water immersion and Dust protection for hash environment ·
Simple assembly requiring no special tools ·
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Application
FTTx wiring project
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
Cable Specification:
| Application | Aerial, Direct Buried, Duct |
| Cable Type | Outdoor Cable |
| Fiber Type | G657A1/G657A2/G657B3, customized |
| Termination | One end or both ends |
| Product Type | Drop Assemblies |
| Connector A | Huawei Mini SC APC Connector |
| Connector B | No connector, SC APC or Huawei Mini SC APC Connector |
| Cable Length | Customized |
| Operation Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥55dB |
