IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box

Name: IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : FDB208

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 5~7 Business days

Packaging Details : Carton Box

Fiber ports : Up to 24 single fiber

Material : ABS or PC

Protective Level : IP65

Dimension : 200*150*46

Color : White

Application : FTTH FTTB FTTX Network

Contact Now

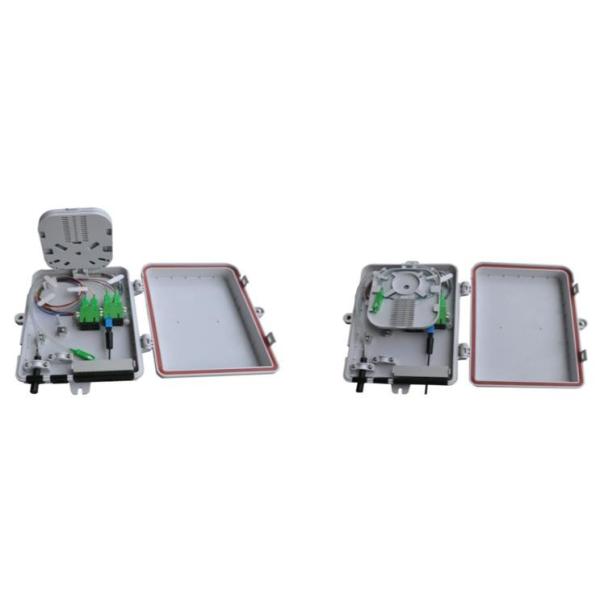

FTTH optical distribution box, 1x4 or 1X8 PLC splitter, up to 24 drops

This Optical distribution box are applicable in FTTH project; Suitable for corridor, basement, room and building's outer walls application; It may distribute cables after installed splitters, it also may draw out room fiber optic cables by direct or cross –connections. It is with the function of mechanical splice, fusion splice, light splitting, wiring distributions

Features:

Can accommodate 1x4 & 1X8 PLC splitter

Can assembly two splice trays and accommodate 24 FTTH optic cables

Two open cable ports can be realized without breaking the cable

Wall mounted and pole mounted
2 inlet ports, 24outlet ports

Industry standard user interface, be made of high impact plastic
Anti-UV, ultra violet resistant and rainfall resistant
Up to 24 FTTH drops

Application

Widely used in FTTH access network.
CATV Networks
Local Area Networks

Data communications Networks

Telecommunication Networks

Specification

Model	Capacity	Size
FDB208/0224	24 port	200mm(W)x150mm(D)x46mm(D)

IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box
