IP68 FTTH 16 Core Fiber Optic Terminal Box With Huawei Mini SC

Brand Name : UNIFIBER-OEM

Model Number : FTTH 16 core fiber optic terminal box

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : FTTH 16 core fiber optic terminal box

Capacity : 16 core

Material : ABS+PC

Feeder cable ports : 2

PLC splitter : 1x8 mini PLC Splitter

Waterproof connector : 8pcs huawei mini SC

Waterproof Grade : IP68

Application : FTTH

Contact Now

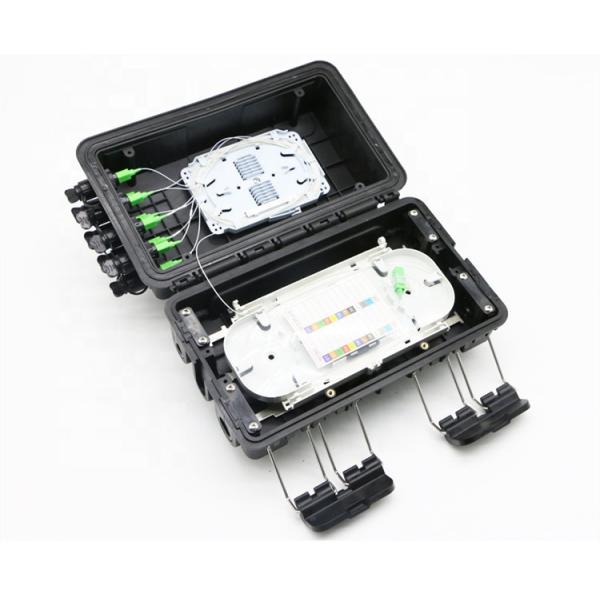

New Designed IP68 FTTH 16 Core Fiber Optic Terminal Box With Huawei Mini SC

New designed FTTH 16 core fiber optic terminal box with huawei mini SC

This terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.both fiber splicing,splitting,distribution can be done in this box,and meanwhile it provides solid protection and management for the FTTX network building.

Features:

IP68 high strength sealing.

8 huawei connector outlets ports for pre connectorized drop cable patch cord.

with 2 feeder cable ports.

Support 1x8 mini PLC Splitter

It made of high-quality impact resistant plastic and has a standard user interface that can be turned on repeatedly.
Outdoor application and good UV resistant, impact resistant and waterproof
3 layer structure and easy to maintain
It is suitable for the application on NAP in the distributed split PON architecture.

Application

Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks

Specification

Size
290*190*110
Max Capacity Of Splice
24 single fiber
Material
ABS+PC
Installation method
Wall/Pole mount
Max. Splitting
1*8 2pcs

IP68 FTTH 16 Core Fiber Optic Terminal Box With Huawei Mini SCIP68 FTTH 16 Core Fiber Optic Terminal Box With Huawei Mini SC
