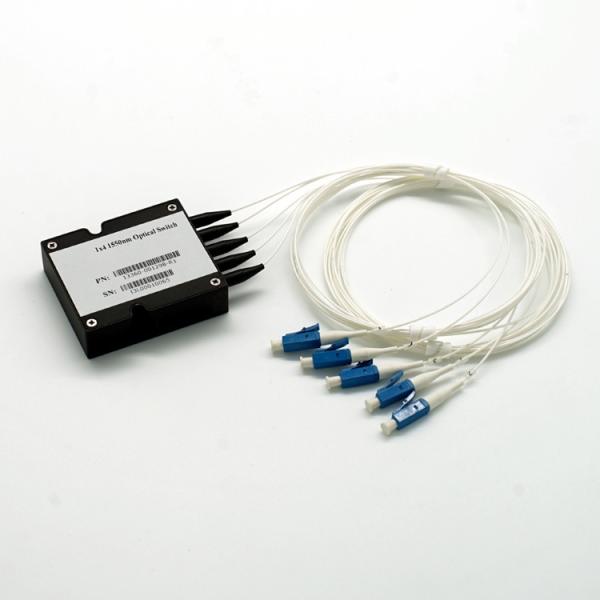

FC SC 1x2 1x4 1x8 Mechanical Optical Switch 1310nm 1550nm 500mW

Brand Name : UNIFIBER-OEM

Model Number : 1xN Mechanical Optical Switch 1310nm 1550nm

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : 1x2 1x4 1x8 Mechanical Optical Switch 1310nm 1550nm

Wavelength : 1310nm 1550nm

Power Input : mW

Switch Type : Latching or No Latching (optional)

Fiber : Corning SMF 28e+

Application : Configurable Add/Drop

Contact Now

1xN Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.


Key Features
Fast Switching Speed ♦ Low Insertion Loss
Wide Wavelength Range
Low Optical Return Loss
Low Cross Talk

Applications

Configurable Add/Drop
Network Route Protection
R&D Laboratory

Specification

Parameters
Units
Performance Specifications
Wavelength range
nm
1310+/-40 1550+/-40
Switching Time
ms
≤ 7.5
Insertion Loss (@ 25 °C)
dB
≤ 1.2
Cross Talk
dB
≥ 55
Polarization Dependent Loss
dB
≤ 0.1
Optical Return Loss
dB
≥ 50
Input Optic Power
mW
500
Life Cycles
-
107
Fiber Type
-
Corning SMF 28e+
Connector Type
-
FC, SC, LC (customer optional)
Switch Type
-
Latching or No Latching (optional)
Switching Voltage
V
4.5-5.5
Switching Current
mA
120
Dimension
mm
1x4: 55x48x15 1x8: 56x80x15

FC SC 1x2 1x4 1x8 Mechanical Optical Switch 1310nm 1550nm 500mW
