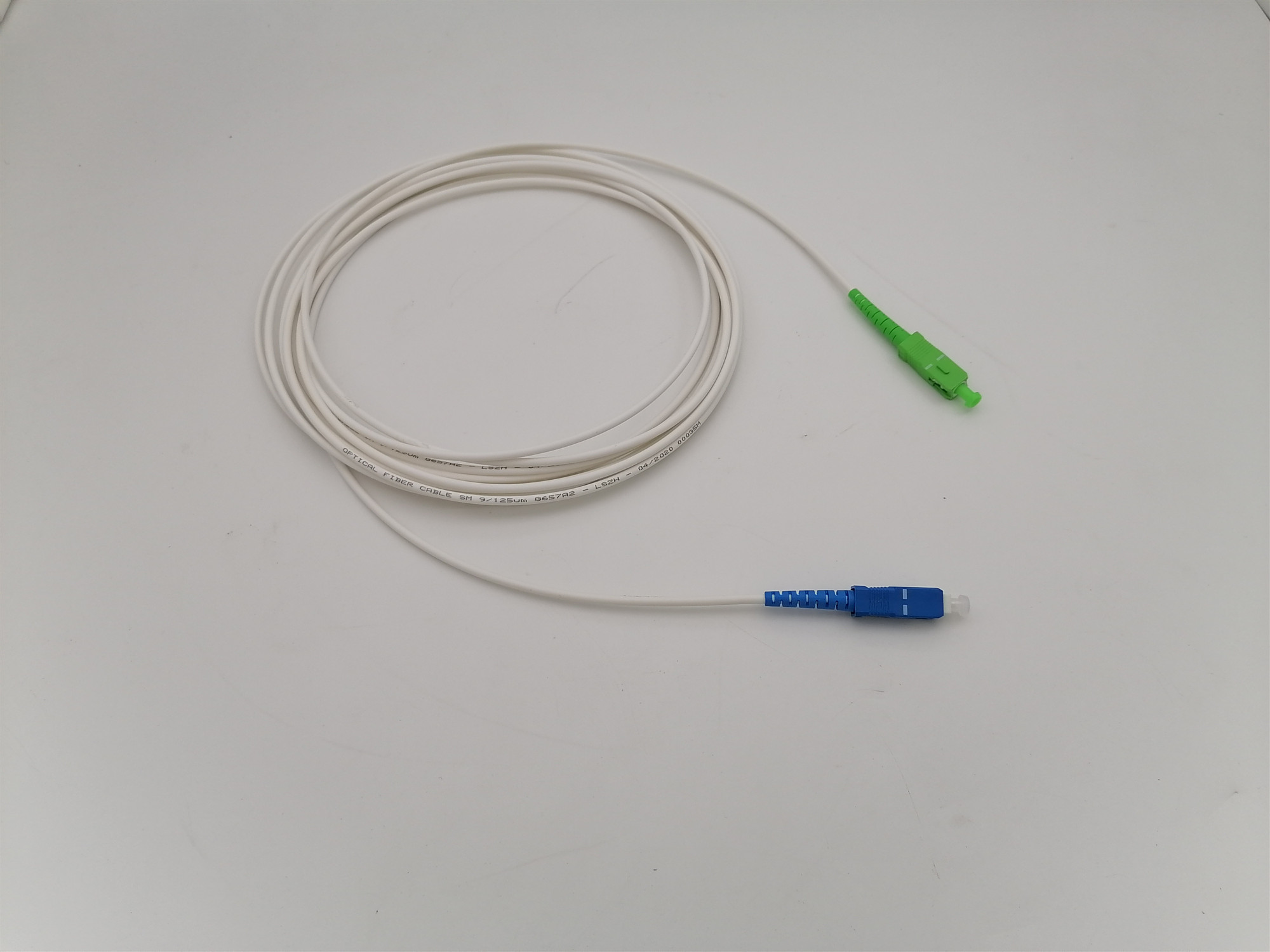

G657A2 SC APC To SC/UPC FTTH 3.0mm Optical Patch Cord

Product Categories
Shenzhen Unifiber Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G657A2 SC APC To SC/UPC FTTH 3.0mm Optical Patch Cord

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : G657A2 SC APC to SC/UPC Patch Cable

Certification : ROHS

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : G657A2 SC APC to SC/UPC Patch Cable

Connector : SC/APC or SC/UPC

Jacket Color : White or Black

Cable Sheath : PVC/LSZH/PE

Diameter : 3.0mm

Fiber : G657A1 or G657A2 or G657B3

Length : 1~100m or Others

Contact Now

G657A2 SC APC to SC/UPC Patch Cable, Single Mode, Simplex, 3.0mm, LSZH Jacket for FTTH

Fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end. There are with Singlemode, Multimode, OM3,OM4,OM5 for options, always come as 1.2/1.6/2.0/3.0mm with PVC or LSZH. UNIFIBER can customized make patch cords with different color jacket per customer's requirement.


FEATURES

Length from 1~150m or any customized length

Connector Types: LC, FC, SC,ST for option

Fiber Mode: G652D, G.657A1, G657A2, G657B3

Low insertion loss, high return loss
High credibility and stability
Good in repeatability and exchangeability

APPLICATION

Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX

Parameters
G657A2 SC APC to SC/UPC Patch Cable
Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1unit/bag
*All values specified are with connectors.

G657A2 SC APC To SC/UPC FTTH 3.0mm Optical Patch Cord
