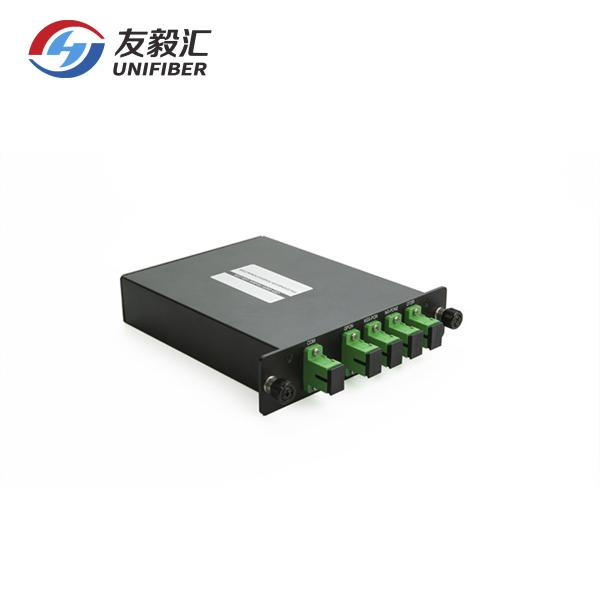

4 Channels Wavelength Division Multiplexer GPON 1300nm OTDR LGX Module

Name: 4 Channels Wavelength Division Multiplexer GPON 1300nm OTDR LGX Module
Brand: Unifiber or OEM
Price: 1 USD

Wholesale 4 Channels Wavelength Division Multiplexer GPON 1300nm OTDR LGX Module from china suppliers

Brand Name : Unifiber or OEM

Model Number : WDM PON Module

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : 4 Channels WDM PON GPON XGPON NGPON2 OTDR LGX Module

No of ports : 4

GPON port wavelength : 1300~1320&1480~1500

XGSPON port wavelength : 1260~1280&1575~1581

NGPON2 port wavelength : 1524~1544&1596~1625

Connector : SC/APC

Package : Metal LGX Mdule

Application : CATV/FTTH

Contact Now

WDM PON GPON XGPON NGPON2 OTDR LGX Module is used to combine GPON/XGSPON/NGPON2 upstream and downstream signals into 1 fiber, or split GPON/XGSPON/NGPON2 upstream and downstream signals from line fiber.

Application:

CWDM System
PON Networks
CATV Links

Features:

Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability

Parameter	Unit	Specification
Operating Wavelength	nm	1260~1650
Port number	PCS	4
GPON port wavelength	nm	1300~1320&1480~1500
XGSPON port wavelength	nm	1260~1280&1575~1581
NGPON2 port wavelength	nm	1524~1544&1596~1625
Insertion Loss(GPON to COM)	dB	≤1.0
Insertion Loss(XGSPON to COM)	dB	≤1.2
Insertion Loss(NGPON2 to COM)	dB	≤1.4
PDL	dB	≤0.20
Ripple over Pass Band	dB	≤0.3
Pass band Isolation(GPON to COM)	dB	≥30
Pass band Isolation(XGSPON to COM)	dB	≥30
Pass band Isolation(NGPON2 to COM)	dB	≥30

4 Channels Wavelength Division Multiplexer GPON 1300nm OTDR LGX Module
