ABS 96/144 Core Optical Fiber Splice Closure Plastic MPP With 5 Cable Holes

Brand Name : UNIFIBER-OEM

Model Number : GJS-M5/JF-SC32

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : IP68 Dome Optical Fiber Splice Closure With 5 round cable holes

Material : ABS

Cable port : 4 small port +1 large port

Dimension : ￠230*435

Splice tray capacity : 24 (single fiber)

Max splice tray number : 6

Capacity : 144

Contact Now

This IP68 96/144 core Dome Optical Fiber Splice Closure With 5 round cable holes Used for the straight-through and branching splice of the fiber cable, this product can be installed overhead, mounted on the wall/pole, or buried underground.

Feature:
1. All performance indicators meet the requirements of the national YD1-2013 closure standard;
2. The box shell adopts modified plastic MPP, with high mechanical strength, anti aging and corrosion resistance;
3. There are 5 round cable holes (4small & 1 large), the large port can be accessed by 2 cables;
4. Stacked splice trays and independent insulation grounding device make it flexible, convenient and safe;
5. The splice tray is provided with a dedicated slot for optical splitter;
6. With good sealing performance, the closure can be reopened and reused without changing the sealing material;
7. All metal parts are made of stainless steel.


Technical index:
Fiber radius of curvature: ≥40mm
Splice tray additional losses: ≤0.01dB
Working temperature: - 40℃ ～ + 65℃
Lateral pressure: ≥2000N / 10 cm
Shock resistance: ≥20N.m
Protection level: IP68

Specification:
Type
GJS-M5/JF (distribution type)
GJS-M5/JF (splitting type)
Size (mm): D*H
￠230*435
￠230*435
Cable port
5
5
Cable diameter (mm)
￠7～￠18
￠7～￠18
Splice tray capacity
24 (single fiber)
24 (single fiber)
Max splice tray number
6
4
Max core capacity
144
96 (single fiber)
Max splitting
—
1:8(2) / 1:16(2pcs) / 1:32(1pc)
Sealing type
Screw thread mechanical seal
Screw thread mechanical seal

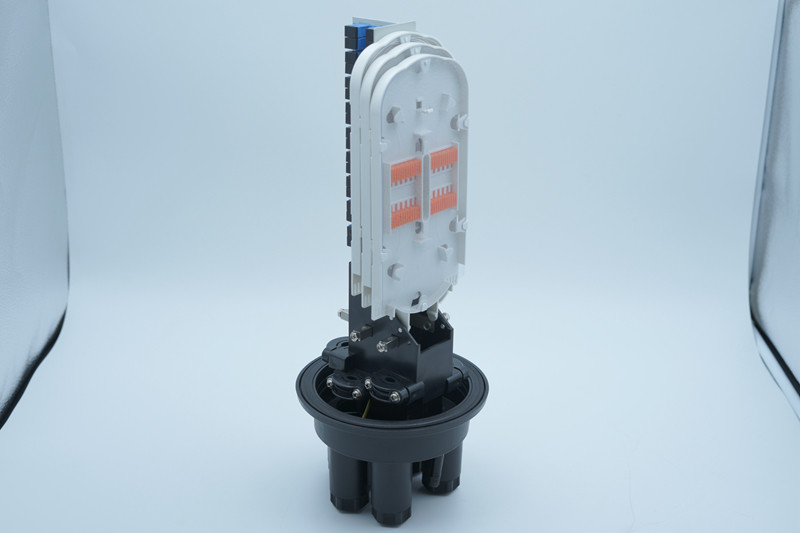

ABS 96/144 Core Optical Fiber Splice Closure Plastic MPP With 5 Cable HolesABS 96/144 Core Optical Fiber Splice Closure Plastic MPP With 5 Cable Holes
